IRS26310DJPbF
PWM duty cycle. In these cases, superior performances can be achieved by using an external bootstrap diode in
parallel with the internal bootstrap network.
Bootstrap Power Supply Design
For information related to the design of the bootstrap power supply while using the integrated bootstrap functionality
of the IRS26310, please refer to Application Note 1123 (AN-1123) entitled “Bootstrap Network Analysis: Focusing on
the Integrated Bootstrap Functionality.” This application note is available at www.irf.com .
For information related to the design of a standard bootstrap power supply (i.e., using an external discrete diode)
please refer to Design Tip 04-4 (DT04-4) entitled “Using Monolithic High Voltage Gate Drivers.” This design tip is
available at www.irf.com .
Separate Logic and Power Grounds
The IRS26310D has separate logic and power ground pin (V SS and COM respectively) to eliminate some of the noise
problems that can occur in power conversion applications. Current sensing shunts are commonly used in many
applications for power inverter protection (i.e., over-current protection), and in the case of motor drive applications, for
motor current measurements. In these situations, it is often beneficial to separate the logic and power grounds.
Figure 24 shows a HVIC with separate V SS and COM pins and how these two grounds are used in the system. The
V SS is used as the reference point for the logic and over-current circuitry; V X in the figure is the voltage between the
ITRIP pin and the V SS pin. Alternatively, the COM pin is the reference point for the low-side gate drive circuitry. The
output voltage used to drive the low-side gate is V LO -COM; the gate-emitter voltage (V GE ) of the low-side switch is the
output voltage of the driver minus the drop across R G,LO .
DC+ BUS
D BS
V CC
V B
(x3)
HO
C BS
(x3)
V S
R G,HO
(x3)
V S1
V S2
V S3
LO
ITRIP
(x3)
R G,LO
+
+
+
V SS
COM
V GE1
-
V GE2
-
V GE3
-
R 2
R 0
+
V X
R 1
-
DC- BUS

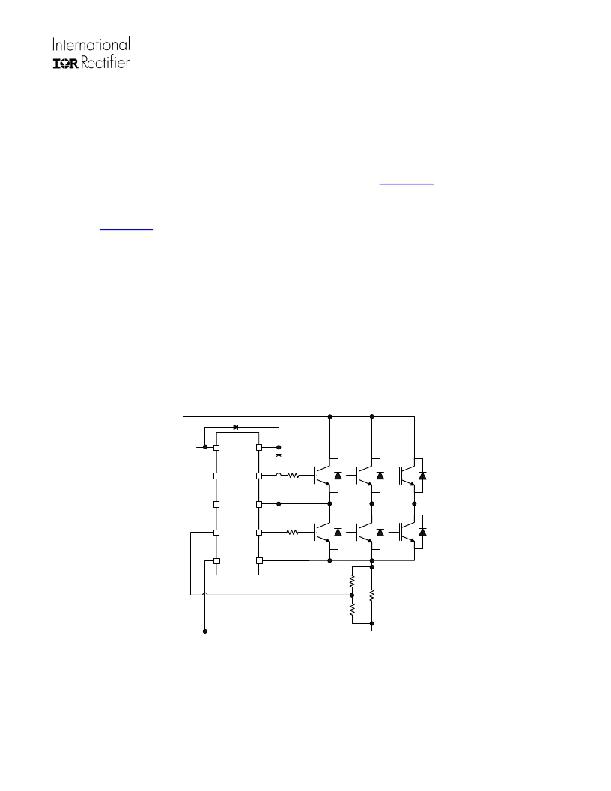

Figure 24: Separate V SS and COM pins
www.irf.com
29
? 2008 International Rectifier
